The novel picture voltaic cell makes use of antimony trisulfide (Sb2S3) as a result of the once more ground space (BSF) layer. Based mostly on its creators, this layer can be included in typical CIGS picture voltaic cells to boost their effectivity and in the reduction of the absorber supplies’s worth.
A world group of scientists has proposed a model new copper indium gallium selenide (CIGS) picture voltaic cell development using antimony trisulfide (Sb2S3) due to the once more ground space (BSF) layer.
Sb2S3 is a promising candidate for the photovoltaic group owing to the earth-abundant and environmentally nice constituent elements alongside acceptable optoelectronic properties equivalent to a captivating band gap of round 1.7 eV, big absorption coefficient, and long-term stability
BSF layers embody a bigger doped space on the rear ground of the picture voltaic cell and are usually used to increase a device’s voltage. “Sb and S are abundantly accessible on Earth. Subsequently, incorporating a thick layer of Sb2S3 in industrial CIGS picture voltaic cells can efficiently in the reduction of their manufacturing costs,” the researchers talked about. “By reducing the thickness and value of the CIGS absorber layer, this technique ensures to make picture voltaic energy further accessible and sustainable.”
They numerically simulated and optimized the picture voltaic cell by means of the SCAPS–1D picture voltaic cell capacitance software program program, developed by the School of Ghent, to simulate the novel cell design.

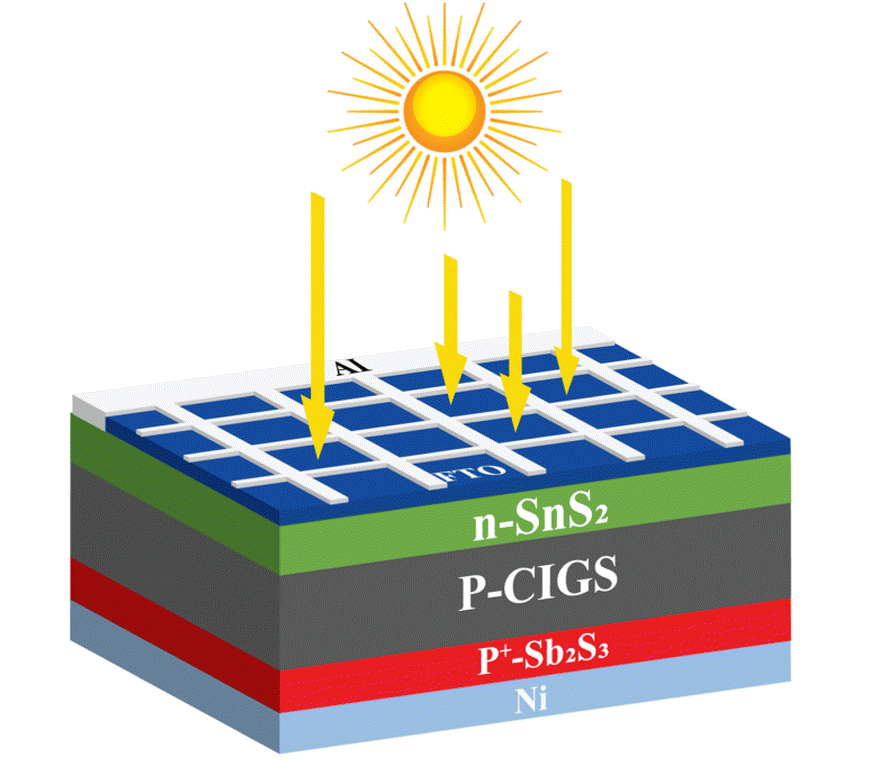

The academics fabricated the cell with an once more contact layer fabricated from nickel (Ni), the Sb2S3-based BSF layer, a CIGS absorber, an electron transport layer (ETL) fabricated from tin disulfide (SnS2), a window layer-based totally on fluorine-doped tin oxide (FTO), and a entrance electrode made with aluminum (Al).
Inside the simulation, the researchers optimized the thicknesses of the buffer, absorber, and BSF layers. Moreover, they investigated acceptor density, defect density, capacitance–voltage (C–V), interface defect density, prices of period and recombination, working temperature, current density, and quantum effectivity.
Image: Begum Rokeya School, RSC Advances, CC BY 3.0 DEED
“After particulars optimization, the optimum thicknesses for the FTO window, CIGS absorber, SnS2 buffer, and Sb2S3 BSF layers are found to be 0.05 μm, 1.0 μm, 0.05 μm, and 0.20 μm, respectively,” the group talked about. “The large thickness of buffer creates the gathering resistance and absorption losses inside the picture voltaic cell development. Given that buffer permits light to enter the picture voltaic cell machine, so wonderful transparency and one of the best thickness are needed, which is the 0.05 mm for SnS2 buffer in our proposed development.”
With these optimized parameters, the simulated double heterojunction (DH) cell exhibited an affect conversion effectivity of 31.15%, an open-circuit voltage of 1.08 V, a short-circuit current density of 33.75 mA cm2, and a fill concern of 88.50%. A reference CIGS cell optimized and simulated with out the Sb2S3 BSF layers achieved an effectivity of twenty-two. 14%, an open-circuit voltage of 0.91 V, a short-circuit current density of 28.21 mA cm2, and a fill concern of 86.31%.
“The outcomes of this analysis current insights into the occasion of an ultra-thin Sb2S3 BSF layer, which can be included in typical CIGS picture voltaic cells to boost their effectivity and in the reduction of the absorber supplies’s worth,” the group concluded.
Its findings and the picture voltaic cell thought have been supplied inside the analysis “Improving the efficiency of a CIGS solar cell to above 31% with Sb2S3 as a new BSF: a numerical simulation approach by SCAPS-1D,” revealed in RSC Advances. The group included scientists from Bangladesh’s Begum Rokeya School, Hajee Mohammad Danesh Science and Experience School, and Pabna College of Science and Expertise, along with from Mexico’s Autonomous College of Querétaro, Iraq’s Al-Karkh School of Science, and Saudi Arabia’s King Khalid College.
